Adapters
Adapters の大きな特徴
Brown & Miller Racing Solutions (ブラウンアンドミラーレーシングソリューションズ)では、幅広いレンジのアダプターを供給できます。
アダプターのカスタムデザインには、専門知識を求められており、レースチームやエンジンビルダーの設計者と協力して進めていくことが必要です。ワンオフの作成から量産対応まで、幅広い対応が可能です。
また、製品開発プロセスの中で、ソリッドモデルを「3D Printer」で作成することもできます。
At Brown & Miller Racing Solutions we offer a comprehensive range of off-the-shelf adapters.
To complement this we are increasingly called upon to use our knowledge and expertise to custom design adaptor solutions, working in partnership with designers and specifiers for race teams and engine builders.
We manufacture anything from one-offs to multiple runs. As part of the design process we can also "print" a solid model.
Male / Male Equal (AN815) [JIC オス x オス アダプター]
| Part No. | ||
|---|---|---|
| JIC Male | Material | |
| BLUE X=D / BLACK X=DBLK / STAINLESS=C | ||
| AN815-02C | -02 | SS |
| AN815-03C | -03 | SS |
| AN815-03X | -03 | Alum |
| AN815-04C | -04 | SS |
| AN815-04X | -04 | Alum |
| AN815-06X | -06 | Alum |
| AN815-08X | -08 | Alum |
| AN815-10X | -10 | Alum |
| AN815-12X | -12 | Alum |
| AN815-16X | -16 | Alum |
“T” Piece Equal (AN824) [JIC オス 3Way “T”アダプター]
| Part No. | ||
|---|---|---|
| JIC Male | Material | |
| BLUE X=D / BLACK X=DBLK / STAINLESS=C | ||
| AN824-2C | -02 | SS |
| AN824-3C | -03 | SS |
| AN824-3X | -03 | Alum |
| AN824-4C | -04 | SS |
| AN824-4X | -04 | Alum |
| AN824-6X | -06 | Alum |
| AN824-8X | -08 | Alum |
| AN824-10X | -10 | Alum |
| AN824-12X | -12 | Alum |
| AN824-16X | -16 | Alum |
Male / Male Equal 90° Elbow (AN821) [JIC オス x JIC オス エルボーアダプター]
| Part No. | ||
|---|---|---|
| JIC Male | Material | |
| BLUE X=D / BLACK X=DBLK / STAINLESS=C | ||
| AN821-03C | -03 | SS |
| AN821-04C | -04 | SS |
| AN821-06C | -06 | SS |
| AN821-08C | -08 | SS |
Male / Male Unequal 90° Elbow (AN919) [JIC オス x JIC オス 異径アダプター]
| Part No. | ||
|---|---|---|
| JIC Male | Material | |
| BLUE X=D / BLACK X=DBLK / STAINLESS=C | ||
| AN919-02-04C | -02/ -04 | SS |
| AN919-03-04X | -03 / -04 | Alum |
| AN919-03-06X | -03 / -06 | Alum |
| AN919-04-06X | -04 / -06 | Alum |
| AN919-04-08X | -04 / -08 | Alum |
| AN919-06-08X | -06 / -08 | Alum |
| AN919-06-10X | -06 / -10 | Alum |
| AN919-08-10X | -08 / -10 | Alum |
| AN919-06-12X | -06 / -12 | Alum |
| AN919-08-12X | -08 / -12 | Alum |
| AN919-10-12X | -10 / -12 | Alum |
| AN919-10-16X | -10 / -16 | Alum |
| AN919-12-16X | -12 / -16 | Alum |
Coupler Female / Female (FCP) [JIC メス x JIC メス アダプター]
| Part No. | ||
|---|---|---|
| JIC Male | Material | |
| BLUE X=D / BLACK X=DBLK | ||
| FCP-03X | -03 | Alum |
| FCP-04X | -04 | Alum |
| FCP-06X | -06 | Alum |
| FCP-08X | -08 | Alum |
| FCP-10X | -10 | Alum |
| FCP-12X | -12 | Alum |
| FCP-16X | -16 | Alum |

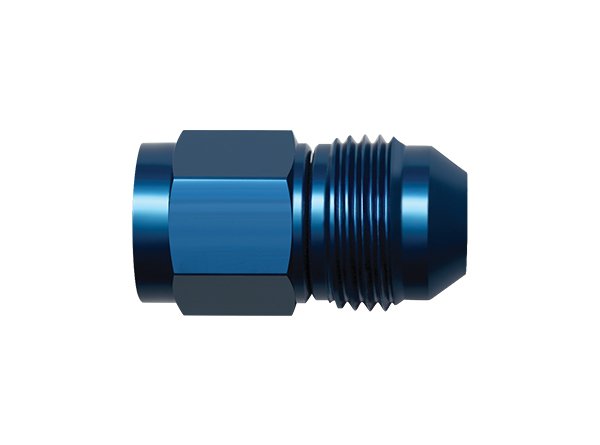

Reducer Fittings [JIC メス x JIC オス アダプター]
| Part No. | |||
|---|---|---|---|
| Female Thread | Male Thread | Material | |
| BLUE X=D / BLACK X=DBLK | |||
| AN950-04-03X | -04 | -03 | Alum |
| AN950-06-04X | -06 | -04 | Alum |
| AN950-08-04X | -08 | -04 | Alum |
| AN950-10-08X | -10 | -08 | Alum |
| AN950-12-08X | -12 | -08 | Alum |
| AN950-12-10X | -12 | -10 | Alum |
| AN950-16-12X | -16 | -12 | Alum |
Male / Female 90°（CPL) [JIC メス x JIC オス エルボーアダプター]
| Part No. | |||
|---|---|---|---|
| Female Thread | Male Thread | Material | |
| BLUE X=D / BLACK X=DBLK / STAINLESS=C | |||
| CPL-903C | -03 | -03 | SS |
| CPL-904C | -04 | -04 | SS |
| CPL-906C | -06 | -06 | SS |
Female / Female 90°（CPL) [JIC メス x JIC メス エルボーアダプター]
| Part No. | |||
|---|---|---|---|
| Female Thread | Female Thread | Material | |
| BLUE X=D / BLACK X=DBLK / STAINLESS=C | |||
| CPL-9003C | -03 | -03 | SS |
JIC Male Plug (AN806) [JIC プラグ]
| Part No. | ||
|---|---|---|
| JIC Male | Material | |
| BLUE X=D / BLACK X=DBLK | ||
| AN806-02X | -02 | Alum |
| AN806-03X | -03 | Alum |
| AN806-04X | -04 | Alum |
| AN806-06X | -06 | Alum |
| AN806-08X | -08 | Alum |
| AN806-10X | -10 | Alum |
| AN806-12X | -12 | Alum |
| AN806-16X | -16 | Alum |
JIC Female Cap (AN929) [JIC キャップ]
| Part No. | ||
|---|---|---|
| JIC Male | Material | |
| BLUE X=D / BLACK X=DBLK | ||
| AN929-02X | -02 | Alum |
| AN929-03X | -03 | Alum |
| AN929-04X | -04 | Alum |
| AN929-06X | -06 | Alum |
| AN929-08X | -08 | Alum |
| AN929-10X | -10 | Alum |
| AN929-12X | -12 | Alum |
| AN929-16X | -16 | Alum |
Banjo Bolt [Banjo ボルト]
| Part No. | |||||||
|---|---|---|---|---|---|---|---|
| Thread Size | A | B | |||||
| Stainless Steel | Aluminum | Plated Steel | ins | mm | ins | mm | |
| BJB-02-2-7 | --- | BJB-02-P | M8 x 1.00 | 1/2" | 12.7 | 0.76 | 19.0 |
| BJB-02-3-7 | --- | --- | M8 x 1.25 | 1/2" | 12.7 | 0.79 | 20.0 |
| BJB-03-2-7 | --- | BJB-03-2-P | M10 x 1.00 | 9/16" | 14.3 | 0.79 | 20.0 |
| BJB-03-2-7-L | --- | BJB-03-2-P-L | M10 x 1.00 | 9/16" | 14.3 | 0.98 | 25.0 |
| BJB-03-2-7-S | --- | --- | M10 x 1.00 | 9/16" | 14.3 | 0.71 | 18.0 |
| BJB-03-3-7 | --- | BJB-03-3-P | M10 x 1.25 | 9/16" | 14.3 | 0.79 | 20.0 |
| BJB-03-3-7-L | BJB-03-3-3-L | BJB-03-3-P-L | M10 x 1.25 | 9/16" | 14.3 | 0.98 | 25.0 |
| With Locking Wire Hole | |||||||
| BJB-03-2-7S-W | --- | --- | M10 x 1.00 | 9/16" | 14.3 | 0.71 | 18 |
Banjo to JIC Male [Banjo x JIC オス]
| Part No. | ||||
|---|---|---|---|---|
| JIC Male | "A" Bolt Size | |||
| Stainless Steel | Aluminum | ins | mm | |
| BJA-02-03-7 | --- | -02 | 3/8" | 10 |
| BJA-03-7 | BJA-03-3 | -03 | 3/8" | 10 |
| BJA-04-7 | BJA-04-3 | -04 | 7/16" | --- |
JIC Male to Metric Male (Concave) [JIC オス x Metric オス]
| Aluminum | Stainless Steel | JIC Male | Metric Thread |
|---|---|---|---|
| ALUMINUM = D | STAINLESS = C | ||
| 306-03-31D | 306-03-31C | -03 | M10 x 1.00 |
| 306-03-M121D | 306-03-M121C | -03 | M12 x 1.00 |
| 306-04-31D | --- | -04 | M10 x 1.00 |
| 306-04-M121D | --- | -04 | M12 x 1.00 |
| 306-06-31D | --- | -06 | M10 x 1.00 |
| 306-06-32D | --- | -06 | M10 x 1.25 |
| 306-06-M121D | --- | -06 | M12 x 1.00 |
| 306-06-M12D | --- | -06 | M12 x 1.50 |
| 306-06-M16D | --- | -06 | M16 x 1.50 |
| 306-08-M16D | --- | -08 | M16 X 1.50 |
| 306-10-M18D | --- | -10 | M18 X 1.50 |
| 306-12-M20D | --- | -12 | M20 X 1.50 |
